Construction Set Out Surveyors Victoria

Precise construction set out for commercial, civil, industrial and infrastructure projects across Victoria. We translate design drawings into physical marks on site so trades can build accurately, first time, with no guesswork or rework.

Why Set Out Decides Whether Sites Run Smoothly

Construction set out is the bridge between design and build. When it's done well, trades work confidently and the program moves forward. When it's rushed, inconsistent or late, every following task wears the consequences — rework, clashes, missed inspections and wasted materials.

• Late Drawing Changes

  Revised drawings can render existing marks useless overnight. Without a surveyor who tracks versions carefully, trades end up building from the wrong information.

• Tight Tolerances

  Structural steel, precast panels and tilt-up construction all demand millimetre accuracy. Small errors at set out compound through the build.

• Congested Sites

  Limited access, active trades and stockpiles all make set out harder. Marks need to survive the day-to-day reality of a working construction site.

• Staged Works

  Multi-stage projects need consistent control across handovers. Without it, levels drift, alignments don't tie in and as-builts fail to reconcile.

Set Out That Crews Can Actually Use

We approach every set out with the trade in mind. Marks need to be in the right place, clearly identified and protected long enough to be useful. We confirm drawings, control and access before mobilising, and stay close to the site team through construction.

• Verified Site Control

  Every set out begins with a checked control network. We don't assume — we confirm survey marks, datum and adjustment so every subsequent task ties back to a reliable origin.

• Clear, Durable Marks

  We use the right markers for the surface — paint, nails, pins, pegs or scribes — and label them so trades aren't second-guessing what each one represents.

• Drawing & Revision Control

  Before pegging anything, we confirm we're working from the current issue of every drawing. Revisions are tracked, and superseded marks are removed so site teams never work from old information.

• Ongoing Verification

  We don't disappear after the first visit. As construction progresses, we verify lines, levels and alignments so issues are caught while they're easy to fix.

Set Out Services We Provide

Our construction set out work covers every stage of a build, from initial control through to final verification. We support builders, civil contractors and project engineers across commercial, industrial, civil and infrastructure projects.

• Building Lines & Foundations

  Footprints, footings, slab edges and column grids set out from approved architectural and structural drawings, ready for excavation and formwork.

• Levels & Datum Transfer

  Floor levels, slab heights and structural reference points transferred from site benchmarks so every trade is working off the same vertical control.

• Drainage & Service Set Out

  Pit, pipe and conduit locations marked from civil drawings, including invert levels, alignments and tie-ins. We help avoid clashes between services and structure before they happen.

• Structural Steel & Precast

  Anchor bolts, base plates, holding-down assemblies and panel set out marked to the tight tolerances structural elements demand.

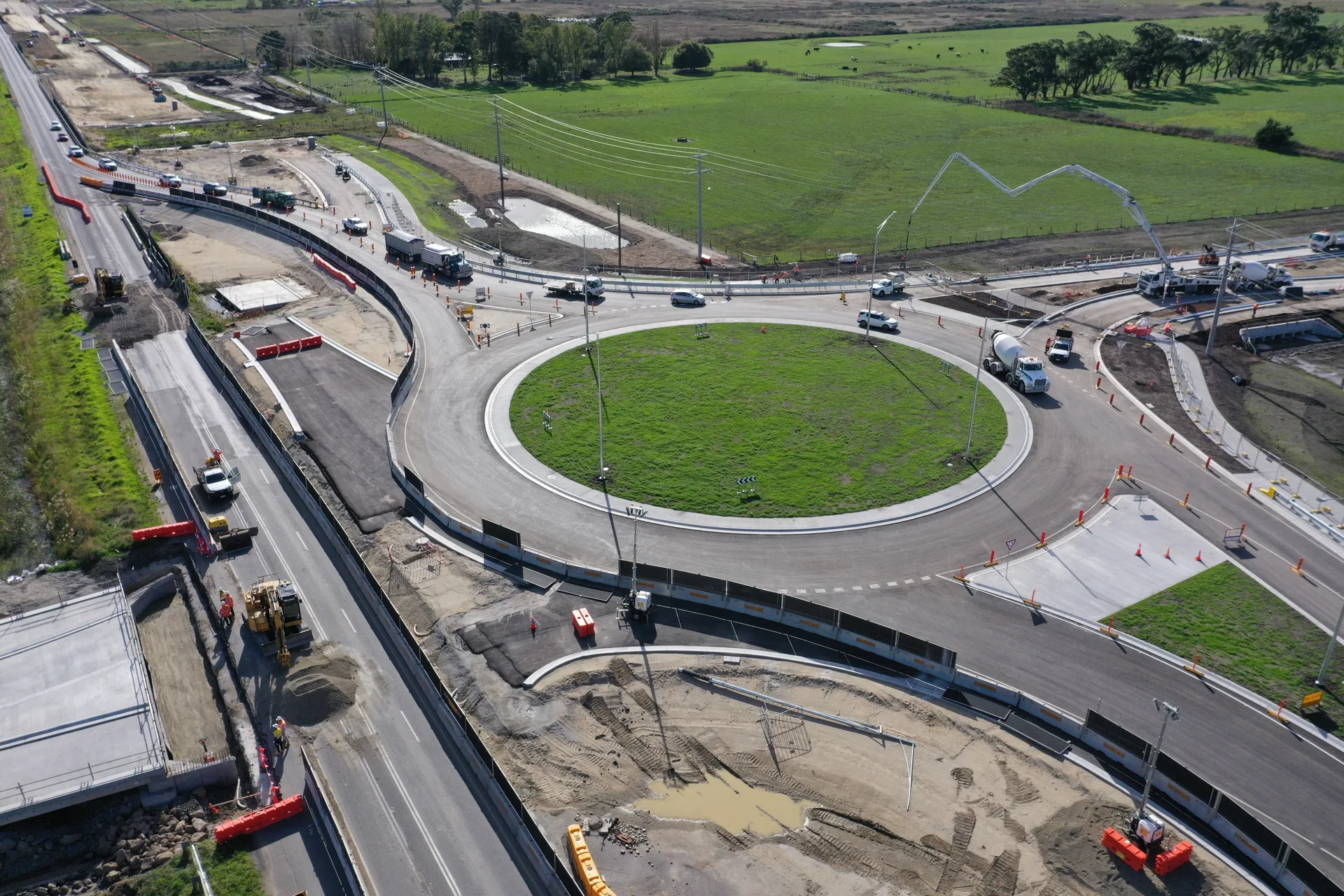

• Road, Kerb & Pavement Set Out

  Alignments, offsets and finished surface levels marked for civil construction works including roads, kerbs, channels and pavements.

• Verification & As-Built Checks

  Independent checks against design at key construction stages, with clear reporting so non-conformances are caught early and documented.

The Right Tool for Every Set Out

Set out accuracy depends on the right instrument for the task. Our equipment fleet allows us to match the technology to the tolerance — from millimetre-precise robotic total stations for structural work to GNSS rovers for civil set out across long alignments.

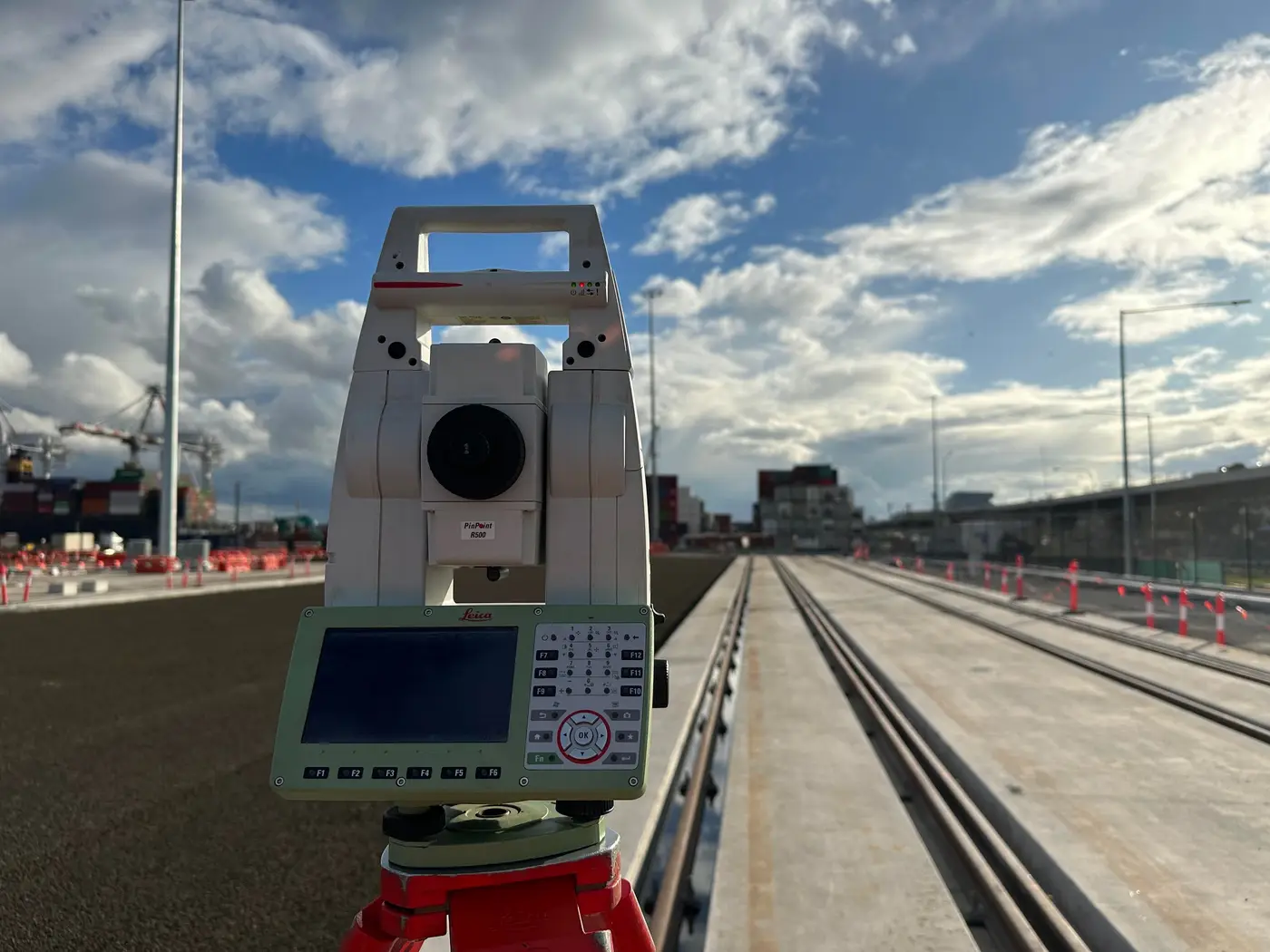

Leica and Trimble robotic total stations form the backbone of our structural and building set out, delivering the precision required for steel, precast and tight architectural detailing.

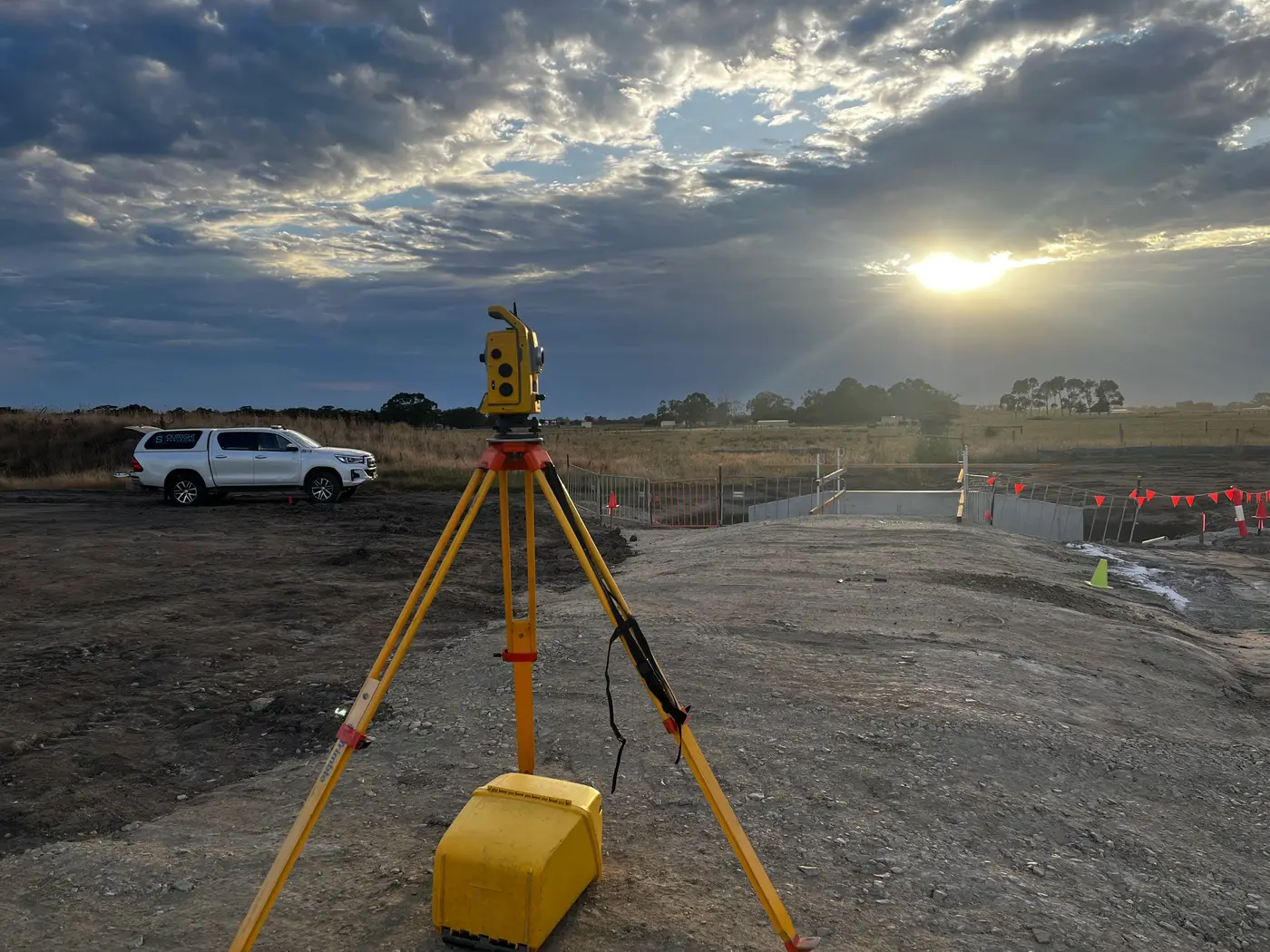

For civil works, our GNSS rover fleet — including Trimble, Leica, Topcon, Emlid and CHCNAV — covers long-alignment set out efficiently while integrating with any project control system.

On complex or congested sites, we use Leica MS60 and Trimble SX10 multi-stations to combine scanning and conventional set out in a single workflow, reducing time on site without sacrificing accuracy.

Trusted By Businesses Across Australia

Start Your Project With Confidence

Infrastructure surveys, building setouts, 3D scanning, aerial mapping and more. Our experienced team is ready to help. Tell us about your requirements and we'll respond as soon as possible.
